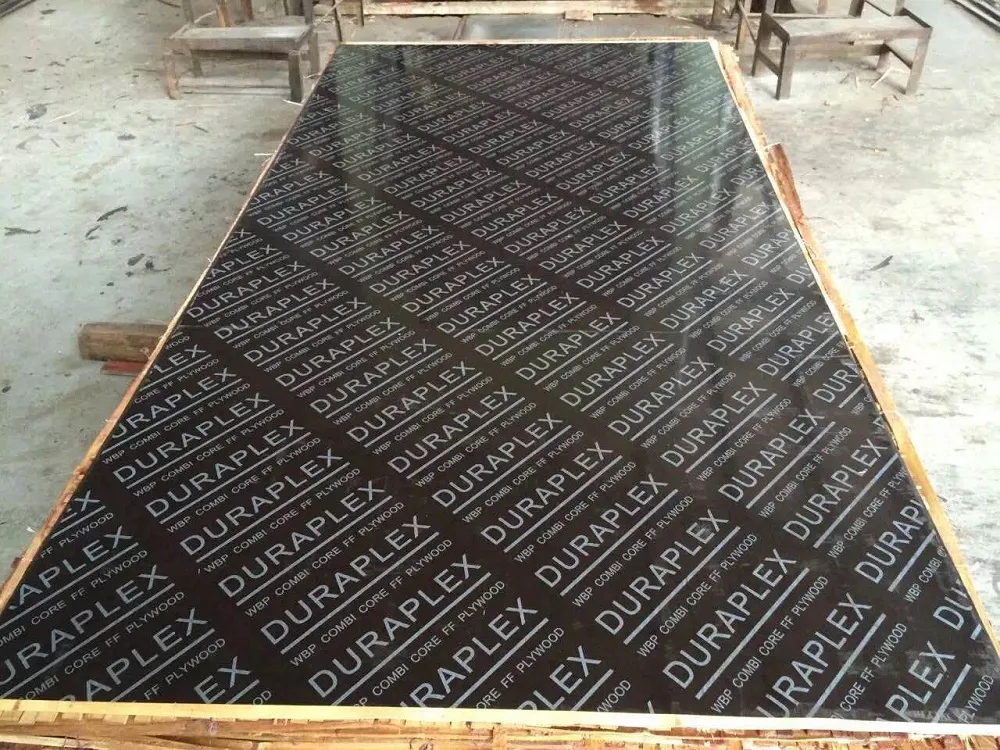

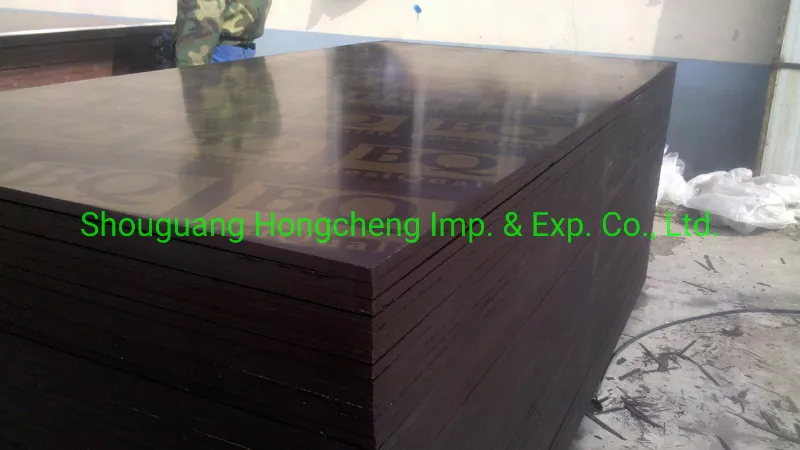

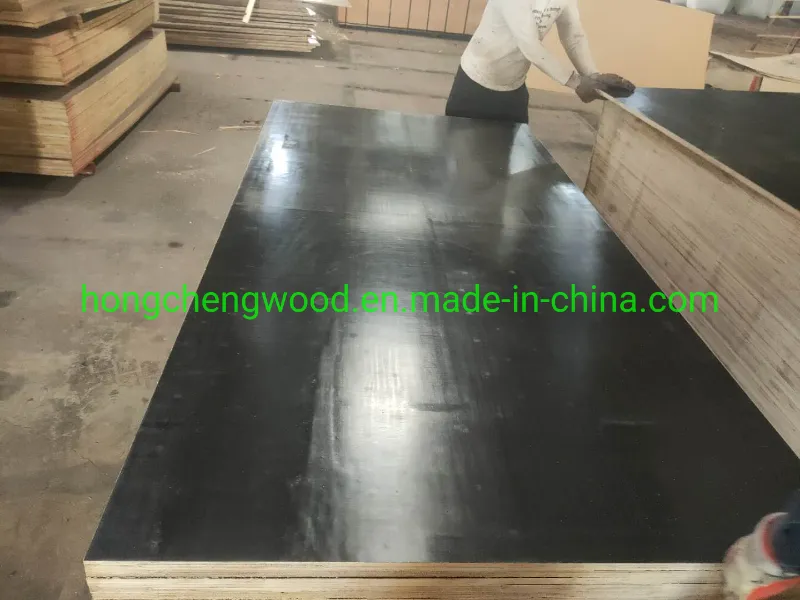

1220 *2440mm/1200*2400mm 17mm Black/Brown/Red/Green Film Faced Plywood Board
Description:Film faced plywood is a concrete shuttering plywood,with a smooth ,double-side phenolic film overlay and sealed edges.It is also a multi-purpose and maintenance free caldding panel for the transport industry and agriculture.Specification :Core :Poplar/birch/combi/hardwood coreGlue:WBP/Me......
Send Inquiry
Product Description
Description:

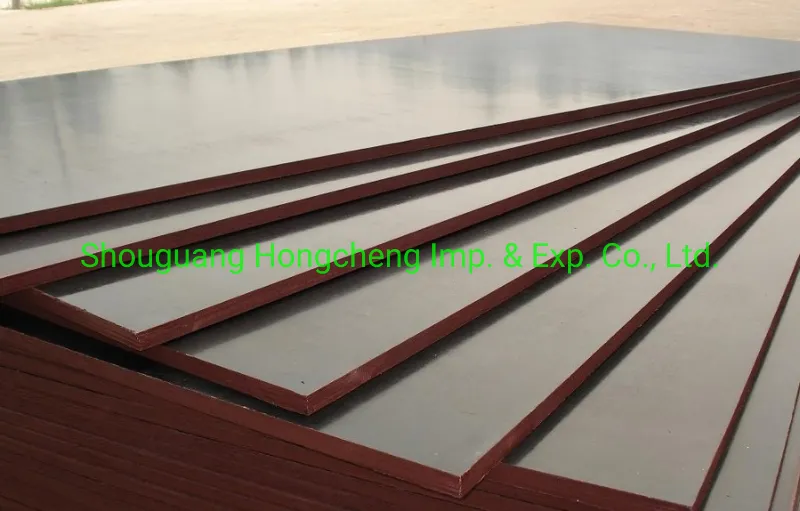

Film faced plywood is a concrete shuttering plywood,with a smooth ,double-side phenolic film overlay and sealed edges.It is also a multi-purpose and maintenance free caldding panel for the transport industry and agriculture.
Specification :
Core :Poplar/birch/combi/hardwood core
Glue:WBP/Melamine/MR
Film color: Dark brown/black film
Thickness:12/15/18/21/24/27/30mm
Density:550-700kg/cbm.Poplar core: about 550kg/cbm/Hardwood core: about 570kg/cbm/Combi core: about 560kg/cbm/Birch core: about 700kg/cbm
Edge:Sealed with water-proof paint
Veneer layers: 9mm 5 or 7 layers
15mm 9 or 11 layers
21mm 13 or 15 layers
Size:
| Width | Length |
| 1200 | 1200/ 1800/ 2400/ 2650/ 2700/ 3000/ 3660mm |
| 1250 | 1250/ 2500mm |
| 1500 | 1500/ 1800/ 2400/ 2700/ 3000/ 3600mm |
Properties
- Excellent strength/weight ratio
- Sound face for smooth surface
- Good striking properties
- Possibility to customise according to your needs
End-uses
- Horizontal formwork
- Vertical formwork
- Special formwork
- Frame formwork systems
Bonding
Phenolic resin cross-bonded weather resistant glueing according to EN 314-2/class 3.
Surface and edges
Face and reverse: Dark brown phenolic film 120 g/m2 or 220 g/m2.
Edge sealing: Water resistant paint.
