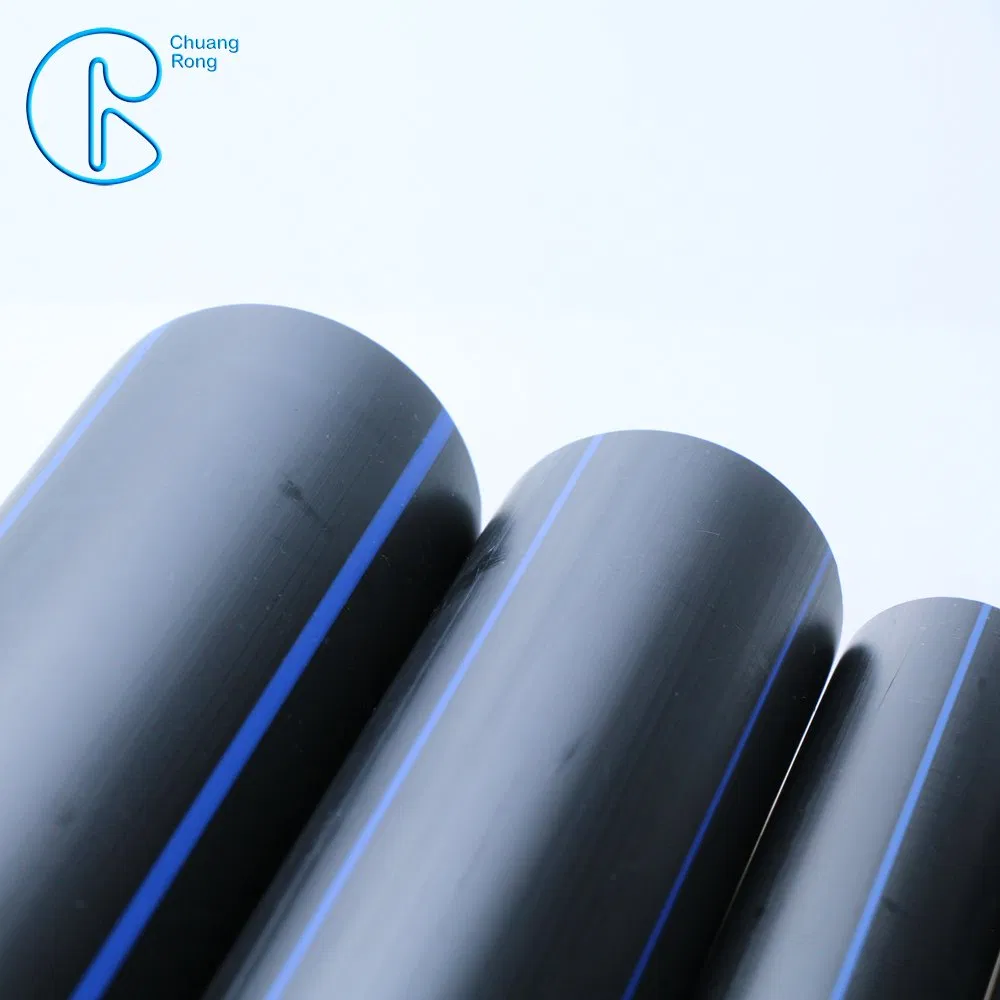

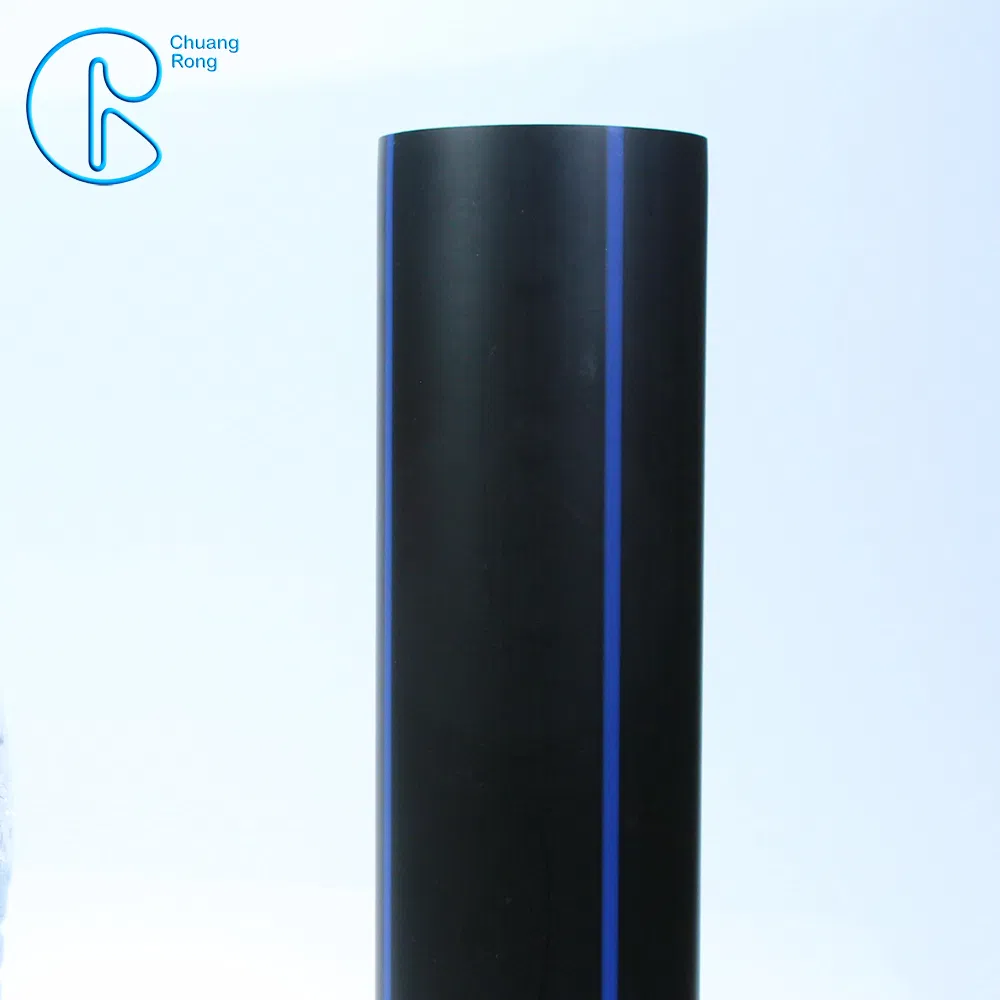

High Quality HDPE Drainage Pipe

Product Description

Perfessional HDPE Water Pipe SDR17
1.Raw material:PE100 or PE80
2.Color:black with blue stripe or as required

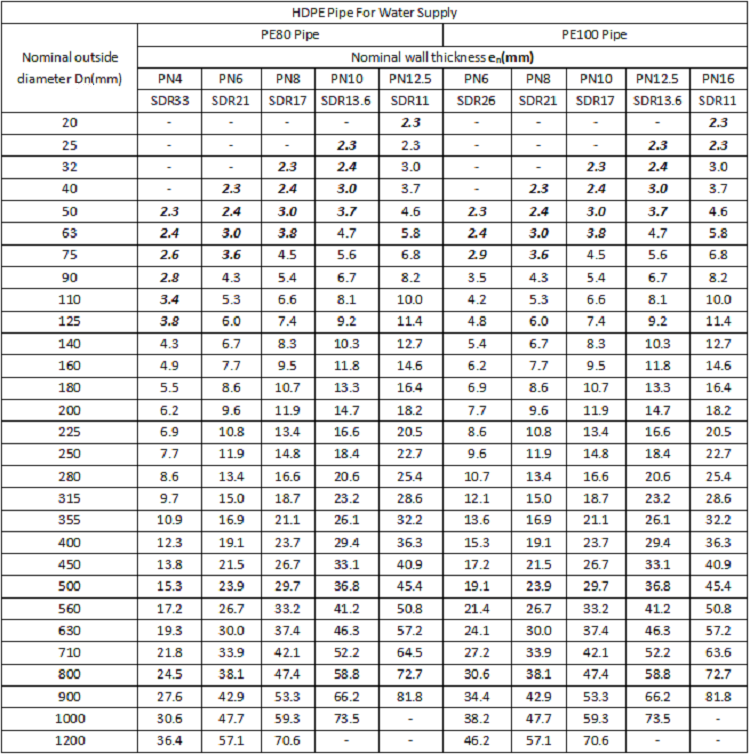

3.Specification:please see the following table

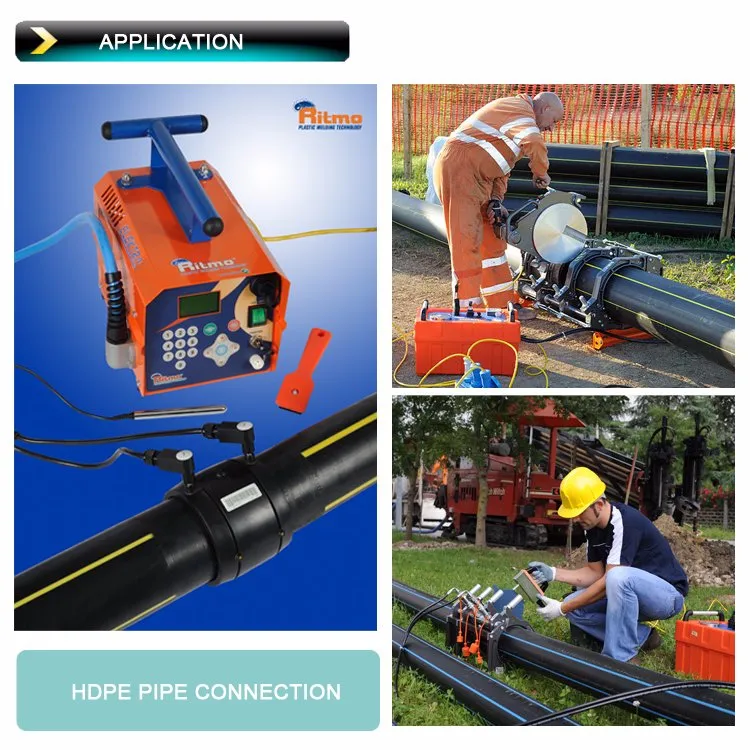

4:Connecting way:socket fusion, butt fusion or electrofusion
5.Advantage:ODM.OEM
6.Pressure:PN16 (SDR11),PN12.5 (SDR13.6),
PN10 (SDR17.6),PN8 (SDR21),PN6(SDR26)
7.Product feature:light weight,high strength,
low resistance,corrosion resistance,easy installation,long lifespan,low cost
High Quality HDPE Drainage Pipe

Note:Italics emboldening specification executive enterprise standards
High Quality HDPE Drainage Pipe

CHUANGRONG DN20-DN1200 HDPE PIPE Properties :
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induction Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
High Quality HDPE Drainage Pipe

Applications:
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
High Quality HDPE Drainage Pipe

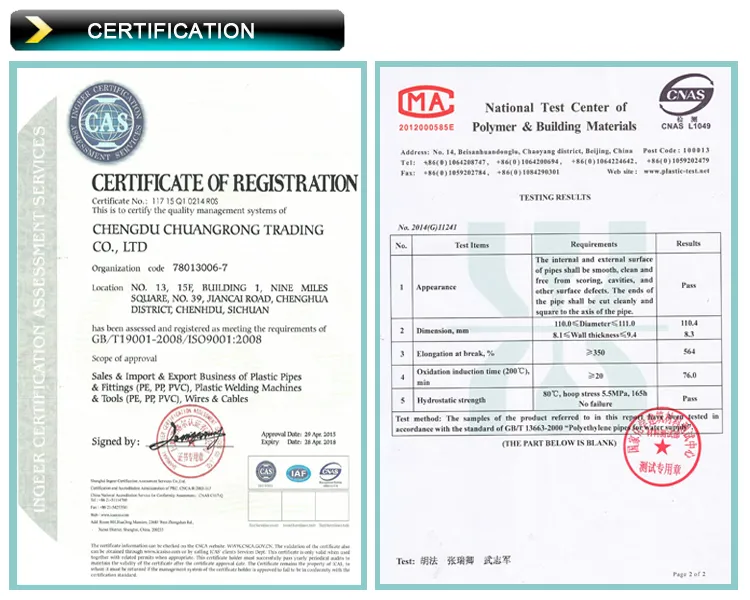

Certification:
We can supply ISO9001-2008, BV ,SGS, CE etc certification.

Inspection:
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
High Quality HDPE Drainage Pipe

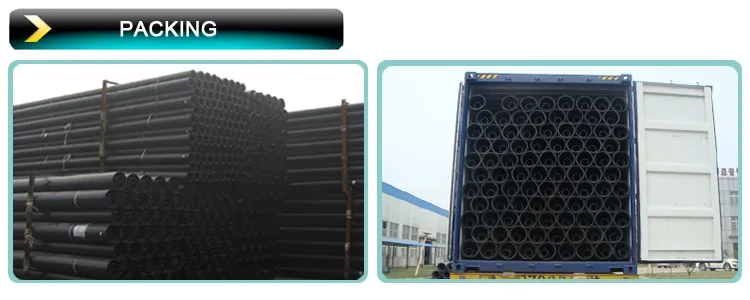

Packing: loaded into container

CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.

Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.

Thank you for your looking through
