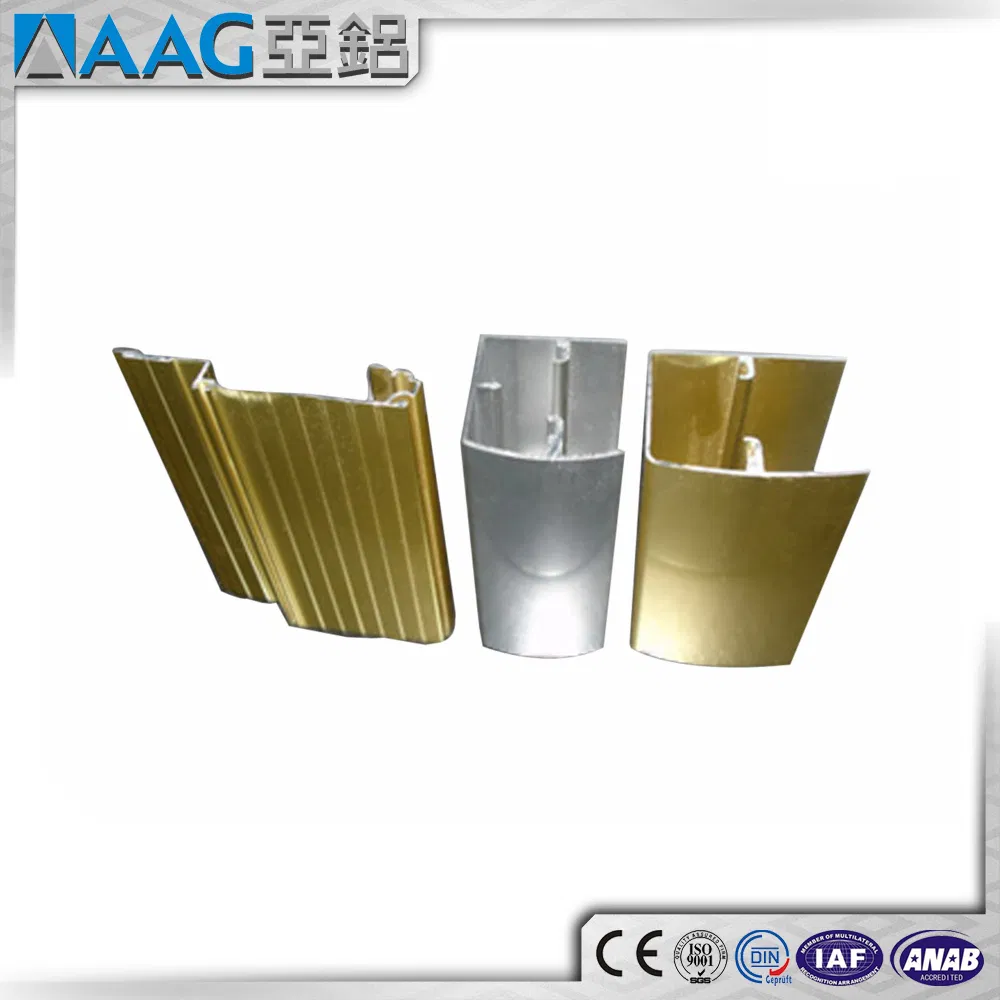

Glass Shower Door Hinges

Aluminum Shower Doo

(1). Suitable for aluminium curtain wall.

(2). 20 years warranty.

(3). High corrosion resistance.

(4). 5-10 years weather resistance.

(5). Good wear resistance & anti-scratch.

(6).Size customized.









More Information:

1.Material: Aluminium alloy 6063, 6061.
2.Temper: T5, T6.
3.Quality standard: DIN; AAMA; AS/NZS; CHINAGB.
4.Surface treatment: Mill finish, anodized, powder coated, wood grain, polished, brushed, electrophoresis, etc.
5.Color avalilable: Anyone is available based on your color samples.
6.Packing details: Shrinking film; Plastic & kraft paper; Wooden pallet
Carton packing; By customer's requirements.
7.Samples Time: Normally, 2-3 weeks.
8.Delivery: 25-30 days for mass production.
9.Production Capacity: 6000MT/Month
10.MOQ: It's based on the drawings. Basically, it's 2 tons.
11.Port: Fuzhou; Xiamen; Shanghai; Guangzhou; As per requested.




What We Can Do


Alloy:	6063	6061	6060	6005	6082	6463	7075
Temper :	T5	T6	T4
Standard:	DIN	AAMA	AS	CHINAGB
Certification:	ISO9001: 2008.
Surface Finish:	Mill finish	Anodizing	Powder Coating	Wood Grain	Electrophoresis	Polished	Brushed
Color:	Anodizing:	Silver, bronze, champagne, titanium, nickel, golden yellow, etc.
		Anodizing thickness is up to 25um.
	Powder Coating:	White, black, bronze, grey, green, etc .
		Powder coating thickness is more than 60um.
	Wood Grain:	1. Italian MENPHIS transfer printing paper.
		2. AKZO NOBEL INTERPON D1010(10 years warranty): Australia ceder, Bush cherry, Chest nut, Jarrah I, Jarrah II, Western red ceder, etc.
		3. AKZO NOBEL INTERPON D34(5 years warranty): Bush wood, Western red, Jarrah, Snow gum, etc.
	Electrophoresis:	Silver, nickel, golden yellow, black, champagne, etc
	Polishing	Silver, nickel, golden yellow, black, etc
	Brushing:	Silver, nickel, golden yellow, black, bronze, etc
Machining:	Cutting, punching, drilling, bending, weld, mill, CNC, etc.
OEM customized aluminium profiles are available.

TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY
Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	0.45-0.9	< 0.35	< 0.1	< 0.1	< 0.1	< 0.1	< 0.1	< 0.05	< 0.15	Surplus
6061	0.4-0.8	0.8-1.2	< 0.7	0.15-0.4	< 0.15	< 0.25	0.04-0.35	< 0.15	< 0.05	< 0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	≤0.1	≤0.1	≤0.15	≤0.05	< 0.1	< 0.05	< 0.15	Surplus

ADODIZINMG QUALITY
Grade	corrosion resistance			abrasive resistance
	CASS test		alkaline dropping test	sandtrial Abrasion coefficient f,g/um
	hours	grade
AA10	16	≥ 9	≥ 50	≥ 300
AA15	32	≥ 9	≥ 75	≥ 300
AA20	56	≥ 9	≥ 100	≥ 300
AA25	72	≥ 9	≥ 125	≥ 300

POWDER COATING QUALITY
Gloss values	Thickness(um)		color variation	indentation resistance	adhesion	impact resistance	cupping test
	Max Thickness	Min Thickness
60	≤ 120	≥ 40	Color should be consistent with the sample color	≥ 80	0	No cracking and shedding phenomenon after the front impact test,small fine lines around the concave is allowed	No cracking and shedding phenomenon after the cupping test ( 6mm indentation depth )
