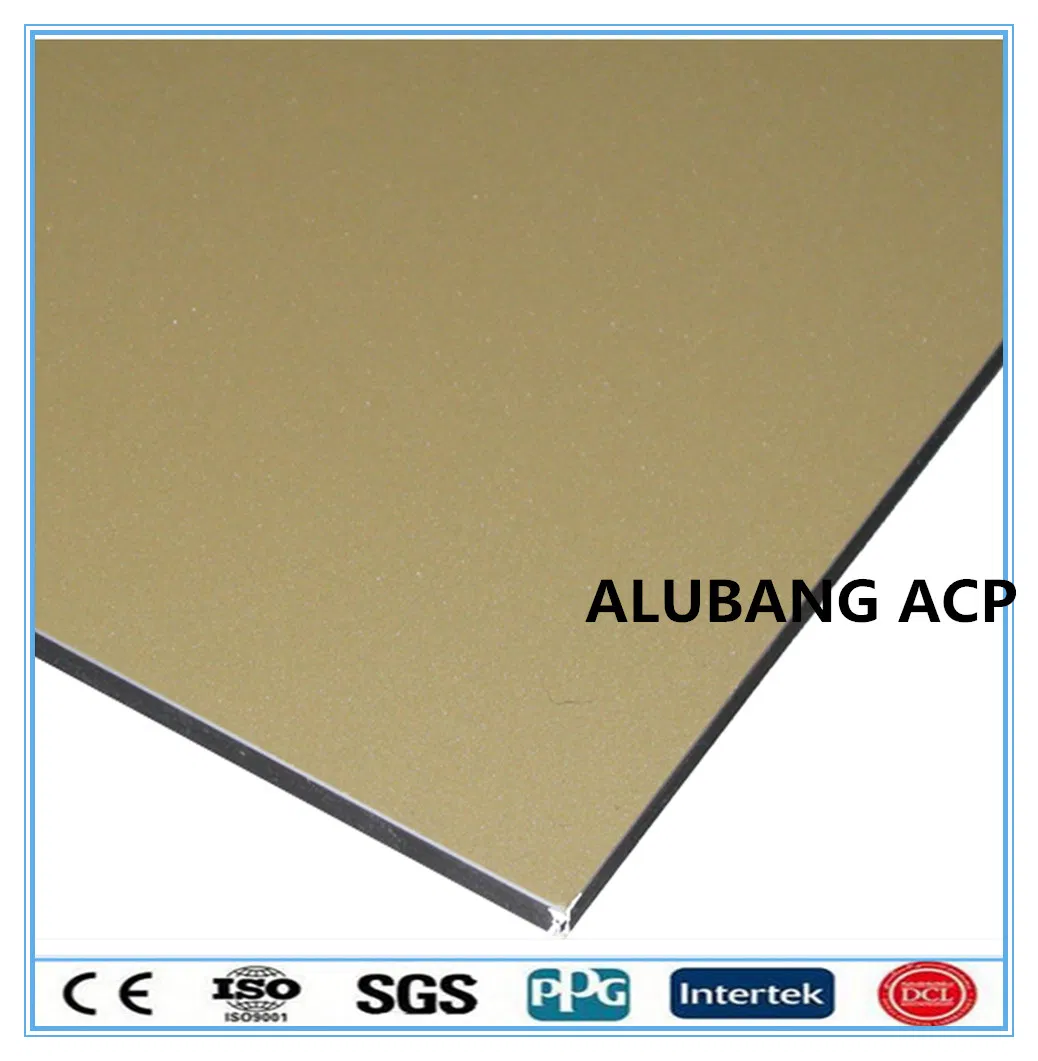

1220 *2440*3mm Aluminum Composite Construction Panel

Product Description

1220*2440*3mm Aluminum Composite Construction Panel
1.Our advantage
1. 10production line, 24 hours running can guarantee the fast delivery
2. More than 10 years development in manufacture and market development,
3.Standard: According to GB/T 17748-2008standard

2.Specifications:
Thickness: 2mm,2.5mm, 3mm, 4mm, 5mm, 6mm .7mm ,8mm (3mm and 4mm are most popular).
Length: 2, 440mm (Max. Length: 6000mm)
Width: 1, 220mm (Max. Width: 900~1570mm)
Weight: 5.5-6kg/sqm based on 4mm thickness
3. Product structure composed:
Front
1) Protective film
2)PVDF clear coating
3)PVDF top coating
4)PVDF primer
5)Chromate treatment
6)Aluminum skin
7)Chromate treatment
8)Bounding lamination layer
9)Standard product PE core (Non Toxic)
10)Optional product fire-Retardant (FR)
Back
1)Service coating (Optional)
2)Chromate treatment
3)Aluminum skin
4)Chromate treatment
4. Materials:
1) Front side: Aluminum roll coated with PVDF or polyester
2) Core: Nontoxic polyethylene
3) Back: Aluminum alloy panel coated with polyester resin painting
5.Colors
pure White, lvory white,off white, champagne Gold ,silver gray ,Grey silver, dark gray Chinese red,pure red,Telecom blue ,coffee ,black ,pure white ,silver brushed, golden brushed nano silver metallic, gold mirror ,black mirror,gloss white; gloss blue, gloss black, glossy red ,etc. (as customer requirements).
6. Features:
1)Excellent fireproof property
2)Super peeling strength
3)Perfect cold resistance performance
4)Excellent surface flatness and smoothness
5)Superior weather, corrosion, pollutant resistance
6)Even coating, various colors
7)Superior impact resistance
8)Lightweight and easy to process
9)Easy to maintain
7. Application Scope
Building exterior curtain walls
As decorative materials of interior walls,
bathroom, doors, ceilings, kitchens,
balconies of home and hotel and so forth.
As decorative materials in the shops
8. Packing: In bulk or wooden cases
9. Transportation: By sea.
10. Terms of payment: T/T, L/C
11. Delivery time:standard color, needs 7-10 days, special color and width need 25 days
12. Port: shanghai china
